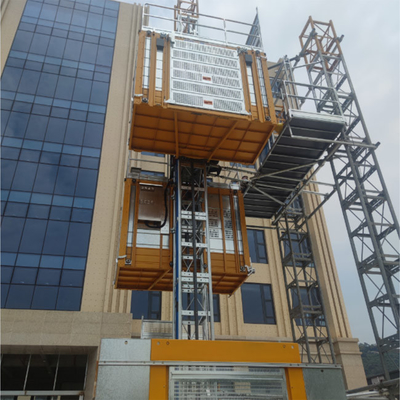

TUV certificated Rack And Pinion Hoist Material Passenger and Material with FC Motor Control
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
bate-papo: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Tamanho da secção do mastro | 650x650x1508mm, 650x200x1508mm | Peças de reposição | Universais e Intercambiáveis |
|---|---|---|---|
| Prova | Tuv | Dispositivo de segurança | Dispositivo de protecção contra quedas, dispositivo de protecção contra sobrecarga, dispositivo de t |
| Produção | Processado por Máquinas CNC | Tamanho da Cabine | 3,2 x 1,5 x 2,5 m, personalizado |
| Energia motora | 2*15kw, 3*15kw, 3*23kw | Tratamento de superfície | DIP quente galvanizado |
Descrição de produto
Product Description:
The Rack And Pinion Hoist is a reliable and efficient construction hoist designed to meet various lifting needs on construction sites. With its sturdy mast section size of 650x650x1508 mm and 650x200x1508 mm, this hoist ensures stability and safety during operation.
The size of the cabin is 3.2 x 1.5 x 2.5 m, providing ample space for workers and materials. Additionally, the cabin size can be customized to suit specific project requirements, offering flexibility in usage.
Equipped with a powerful motor, the Rack And Pinion Hoist comes in motor power options of 2*15kw, 3*15kw, and 3*23kw, ensuring smooth and efficient lifting of materials. The hoist is suitable for a payload range from 2 tons to 3.2 tons, making it versatile for various construction tasks.
For added durability and corrosion resistance, the Rack And Pinion Hoist features a hot dip galvanized surface treatment. This ensures that the hoist can withstand harsh environmental conditions, prolonging its lifespan and reliability on the construction site.
Manufactured to meet the highest quality standards, the Rack And Pinion Hoist is TUV certificated, providing assurance of its safety and performance. Whether transporting materials or providing access for workers, this hoist is a dependable solution for vertical movement on construction sites.
Features:
- Product Name: Rack And Pinion Hoist
- Proof: TUV certificated
- Safety Device:
- Anti-fall Safety Device
- Overload Protection Device
- Emergency Stop Device
- Lifting Speed:
- 0-46 M/min
- 0-63 M/min
- Mast Section Size:
- 650x650x1508 Mm
- 650x200x1508 Mm
- Drive: FC control motors
Technical Parameters:
| Spare Parts | Universal And Interchangeable |
| Motor Control | FC |
| Drive | Frequency Conversion Control Motors |
| Surface Treatment | Hot Dip Galvanized |
| Production | Processed By CNC Machines |
| Motor Power | 2*15kw, 3*15kw, 3*23kw |
| Lifting Speed | 0-46 M/min, 0-63 M/min |
| Mast Section Size | 650x650x1508 Mm, 650x200x1508 Mm |
| Size Of Cabin | 3.2 X 1.5 X 2.5 M, Customized |
| Safety Device | Anti-fall Safety Device, Overload Protection Device, Emergency Stop Device |
Frequently Asked Questions:
Q1. Is the SC200 compliant with European Union regulations?
Yes – TUV SÜD certified under EN 12159:2012 and EN 60204-1:2006; CE marked.
Q2. Can I use the hoist in a 60 Hz country?
Absolutely. Motors are 50/60 Hz dual-labelled; only parameter adjustment in the Schneider VFD is required.
Q3. What is the lead time?
1–2 units: 25 days. 3–8 units: 30 days. 10+ units: 35 days. Stock masts and cages available for urgent replacement.
Q4. Do you provide operator training?
Yes. A TUV-licensed instructor gives a one-day course on erection, daily inspection and emergency lowering; certificates are issued for site records.
